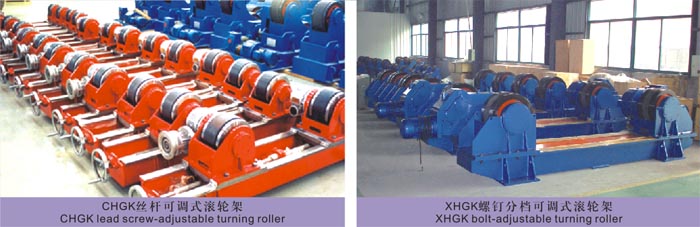

CHGK絲桿可調式滾輪架 / XHGK螺釘分檔可調式滾輪架
| 規格型號 Model |
CHGK2 |
CHGK5 |
CHGK10 |
CHGK20 |
CHGK40 |
CHGK60 |
最大承重 T
Max loading |
2 |
5 |
10 |
20 |
40 |
60 |
工件范圍
Working
range |
dmm |
250 |
250 |
320 |
500 |
600 |
700 |
| Dmm |
1800 |
2300 |
2800 |
3000 |
4200 |
5000 |
橡膠輪
Rubber
roller |
D1mm |
200 |
250 |
300 |
350 |
400 |
450 |
| W3mm |
80 |
100 |
120 |
120 |
120 |
120 |
金屬輪
Metallic
roller |
D2mm |
190 |
240 |
290 |
340 |
392 |
444 |
| W4mm |
16 |
20 |
38 |
45 |
50 |
70 |
線速度m/h
Linear speed |
6~60 |
調速方式
Speed control |
變頻無級調速 VFD |
電機功率kW
Motor power |
2×0.18 |
2×0.37 |
2×0.55 |
2×1.1 |
2×1.5 |
2×1.5 |
| 規格型號 Model |
XHGK2 |
XHGK5 |
XHGK
10 |
XHGK
20 |
XHGK
40 |
XHGK
60 |
XHGK
80 |
XHGK
100 |
XHGK
160 |
XHGK
250 |
XHGK
400 |
XHGK
500 |
XHGK
630 |
XHGK
800 |
XHGK
1000 |
最大承重 T
Max loading |
2 |
5 |
10 |
20 |
40 |
60 |
80 |
100 |
160 |
250 |
400 |
500 |
630 |
800 |
1000 |
工件范圍
Working
range |
dmm |
250 |
250 |
320 |
500 |
600 |
700 |
700 |
700 |
1000 |
1000 |
1000 |
1000 |
1000 |
1500 |
1500 |
| Dmm |
1800 |
2300 |
2800 |
3000 |
4200 |
5000 |
5500 |
6000 |
6000 |
7500 |
7500 |
8000 |
8500 |
9000 |
10000 |
橡膠輪
Rubber
roller |
D1mm |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
- |
- |
- |
- |
- |
- |
- |
| W3mm |
80 |
100 |
120 |
120 |
120 |
120 |
120 |
120 |
- |
- |
- |
- |
- |
- |
- |
金屬輪
Metallic
roller |
D2mm |
190 |
240 |
290 |
340 |
392 |
444 |
490 |
538 |
620 |
700 |
800 |
800 |
850 |
1000 |
1000 |
| W4mm |
16 |
20 |
38 |
45 |
60 |
70 |
70 |
100 |
220 |
260 |
300 |
300 |
350 |
350 |
350 |
線速度m/h
Linear speed |
6~60 |
調速方式
Speed control |
變頻無級調速 VFD |
電機功率kW
Motor power |
2×
0.18 |
2×
0.37 |
2×
0.55 |
2×
1.1 |
2×
1.5 |
2×
1.5 |
2×
2.2 |
2×
2.2 |
2×4 |
2×
5.5 |
2×
5.5 |
2×
5.5 |
2×
7.5 |
2×
7.5 |
2×
11 |
該滾輪架系列由自調式、可調式、平車式、可傾斜式防軸向竄動等多種形式。用于圓柱形筒體的焊接、拋光、襯膠及裝配等，自調節式滾輪架可根據筒體大小自行調節，可調式滾輪架可采用絲桿調節，螺釘分檔調節等，采用交流變頻器控制，線速度為數字顯示，先進可靠，本廠還可根據用戶需要設計定制各利類型的滾輪架。 |
